What Is PP Corrugate?
PP corrugate — short for polypropylene corrugated — is a twin-wall thermoplastic sheet material constructed from two parallel polypropylene skins bonded by internal fluted (corrugated) channels. The resulting sandwich structure delivers outstanding stiffness, impact resistance, and load-bearing capacity at low weight. It is the same fundamental geometry as paper corrugated board, but manufactured from polypropylene resin, which transforms every property that paper corrugated struggles with: moisture resistance, reusability, chemical resistance, and dimensional stability over time.
Elipacko supplies PP corrugate as flat sheet, custom-cut board, and formed box blanks across gauge thicknesses from 4mm to 10mm. Applications range from single-sheet protective packaging inserts to full reusable shipping boxes, bulk bin liners, pallet slip sheets, and retail display structures. The breadth of the PP corrugate product family makes it one of the most versatile materials in modern industrial and commercial packaging.
The PP Corrugate Advantage: Material Properties That Matter
Understanding why PP corrugate outperforms alternative materials starts with the physical properties of polypropylene itself. PP is a semi-crystalline polyolefin with a density of approximately 0.90 g/cm³ — among the lowest of any common structural plastic. Low density means PP corrugate is light: a 4mm sheet weighs roughly 400 to 450 grams per square meter, which compares very favorably to heavier polymer board alternatives and delivers meaningful freight cost savings on any shipment measured by weight.
PP's semi-crystalline structure gives it excellent fatigue resistance — the ability to withstand repeated flexing and loading cycles without crack initiation. This property is directly responsible for the extended reuse lifespan of PP corrugate products. While paper corrugated boards degrade rapidly under mechanical stress and lose virtually all structural integrity after a single wet exposure, PP corrugate retains its mechanical properties through repeated load cycles, cleaning, and temperature changes.
Waterproof construction is inherent, not added. Polypropylene does not absorb water. The twin-wall fluted channels are enclosed at the sheet edges when properly formed, preventing moisture ingress into the internal structure. This means PP corrugate performs in refrigerated environments, humid warehouses, outdoor staging areas, and direct-contact applications with fresh produce or liquids — anywhere that paper-based materials simply fail.
PP Corrugate Product Line from Elipacko
Elipacko's PP corrugate range is designed to address the full spectrum of applications where corrugated plastic material is the optimal solution. From raw sheet to finished formed products, every item is available in food-grade PP resin and supplied with full material documentation.
4mm PP Corrugated Sheet
The most widely used gauge in the PP corrugate range, 4mm twin-wall PP sheet is the standard choice for protective packaging inserts, layer pads, bin liners, lightweight box blanks, point-of-purchase display structures, and reusable signage substrates. At this gauge, PP corrugate provides excellent stiffness for its weight, easy scoring and folding, and clean edges when cut. Standard 48" × 96" sheets are stocked for fast dispatch; custom dimensions are available with standard lead times.
5mm and 6mm PP Corrugated Board
Intermediate gauges at 5mm and 6mm deliver additional stiffness and puncture resistance for applications where 4mm is at the margin of acceptable performance. These gauges are popular for reusable shipping boxes carrying medium-weight products, agricultural produce crates and trays, automotive parts trays, and industrial component storage. The increased wall thickness at 6mm provides a notably stiffer panel with better resistance to racking under eccentric loads.
8mm and 10mm PP Heavy-Gauge Corrugate
Heavy-gauge PP corrugate at 8mm and 10mm is engineered for structural applications: pallet slip sheets, bulk bin liner panels, heavy-duty reusable shipping containers, and load-bearing separator panels in multi-tier pallet systems. At 10mm, PP corrugate provides stiffness comparable to thin plywood at a fraction of the weight, with the additional advantages of waterproofing, chemical resistance, and full recyclability. These heavy gauges are also the basis for Elipacko's custom PP corrugate box range for high-load applications.

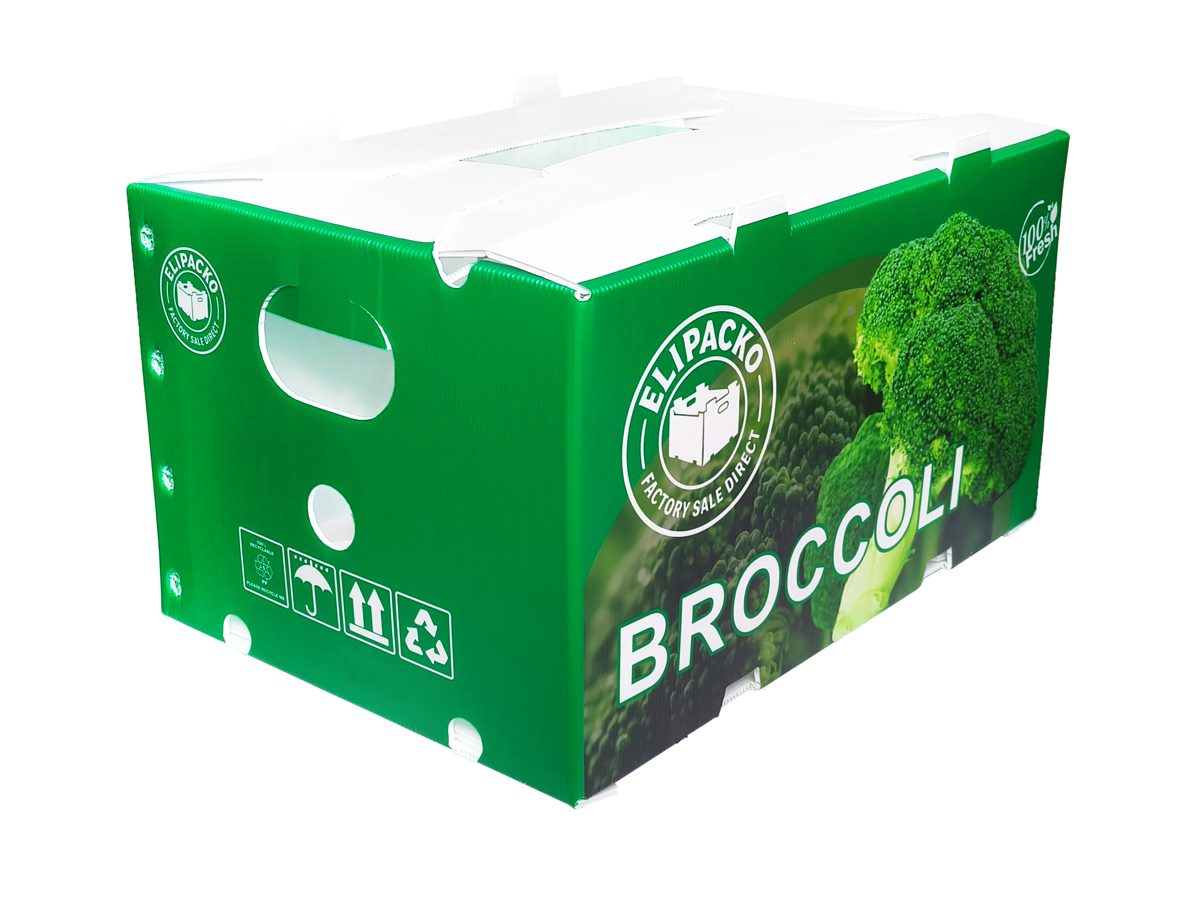

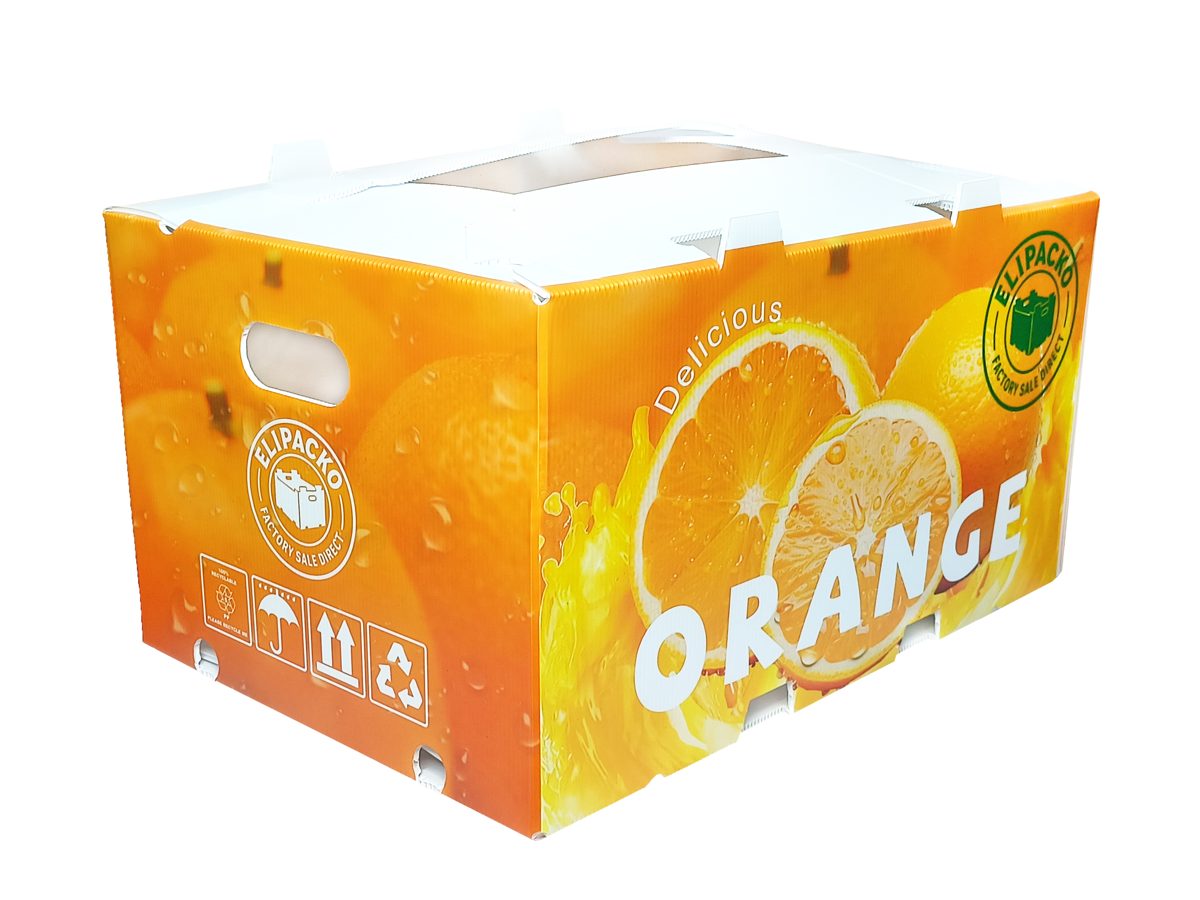

Formed PP Corrugate Boxes
Elipacko's formed PP corrugate boxes are manufactured by scoring and folding heavy-gauge PP corrugated sheet into standard RSC or custom box geometries, joined with PP-compatible adhesive or ultrasonic welding for full structural integrity at corners and base panels. These boxes are produced to customer-specified internal dimensions and are available with integral handles, ventilation slots, drainage ports, or custom print. Formed PP corrugate boxes are rated for 50 or more use cycles under normal conditions — a reuse performance that makes the unit economics compelling even against commodity single-use alternatives.
UV-Stabilized PP Corrugate
For outdoor or high-UV-exposure applications — agricultural staging, outdoor events, construction protection, solar industry logistics — Elipacko supplies UV-stabilized PP corrugate with HALS (hindered amine light stabilizer) additives compounded into the resin. UV-stabilized PP corrugate resists the photodegradation that causes unstabilized polypropylene to chalk and embrittle on UV exposure, extending outdoor service life significantly. UV-stabilized grades are available in 4mm through 10mm gauges with the same custom sizing and food-grade compliance options as standard grades.
FDA 21 CFR Compliance and Food-Safe Applications
Food-contact compliance is a baseline requirement for any PP corrugate product used in food processing, distribution, or retail supply chains in the United States. Elipacko's food-grade PP corrugate is manufactured from polypropylene resin grades compliant with FDA 21 CFR 177.1520, the federal regulation that establishes the standards for olefin polymers — including polypropylene and its copolymers — used as food-contact articles or components of food-contact articles.
FDA 21 CFR 177.1520 sets out the permitted polymer compositions, additive restrictions, and extractable thresholds that govern safe food contact throughout a material's intended use life. Polypropylene's intrinsic inertness — it does not migrate flavor compounds, plasticizers, or reactive substances into food under normal use conditions — makes compliance with these standards straightforward, but Elipacko goes beyond resin selection to ensure complete documentation traceability from raw material to finished product.
Under the Food Safety Modernization Act (FSMA), food facilities are required to implement preventive controls for food safety, and packaging material compliance is a documented component of those controls. Elipacko provides material certificates, resin specification sheets, FDA compliance letters, and test data to support FSMA preventive control documentation, third-party audits under SQF, BRC, or GFSI schemes, and customer-specific supplier qualification programs.
PP corrugate's smooth, non-porous surfaces are easily cleaned with standard food-industry sanitizers including dilute bleach, quaternary ammonium compounds, and acidic cleaners. The absence of surface porosity prevents microbial harbor — a critical hygienic advantage over porous or textured alternative materials in any application where container hygiene directly affects product safety.
Custom Sizes, Print, and Converting
Standard sheet sizes address the majority of applications, but Elipacko's converting capability unlocks the full potential of PP corrugate for specialized requirements. Our CNC flatbed cutting produces custom sheet dimensions, complex die-cut profiles, scored fold lines, perforations, and cutout windows to exact specifications. Custom geometries are available without the prohibitive minimum order quantities typical of overseas-only converters.
Custom print on PP corrugate is applied via UV flatbed printing, which delivers durable single- or multi-color graphics, logos, product information, and barcodes directly onto the PP surface. UV-cured inks bond strongly to polypropylene with excellent abrasion resistance and are available in food-safe formulations for food-contact applications. Print is applied to sheet stock, flat blanks, or formed box surfaces depending on the configuration requirements.
For high-volume programs requiring consistent dimensions and volume pricing, Elipacko's engineering team works directly with customers on blanket purchase arrangements against domestic inventory, ensuring supply continuity without the overhead of maintaining large in-house PP corrugate stocks. Custom colors can be compounded into high-volume PP corrugate production runs for brand differentiation or color-coded handling system applications.
Recyclability and the PP Corrugate Life Cycle
Polypropylene is recyclable under resin code #5 and is recovered by industrial recycling operations across the United States. The 50+ reuse cycle lifespan of properly specified PP corrugate products means that the per-use environmental loading — energy consumption, material use, and waste generation per unit of product protected — is a small fraction of any single-use alternative across the operational life of a packaging program.
When PP corrugate products reach genuine end of service life, Elipacko facilitates connection with certified PP reclaimers who process retired PP corrugate into secondary resin for injection molding, extrusion, and non-food-contact applications. This end-of-life pathway keeps polypropylene in productive material cycles and out of landfill, supporting customers' sustainability commitments with documented material recovery outcomes rather than claims without substance.
To explore the full PP corrugate range, request samples, or discuss custom fabrication and print options for your application, visit elipacko.com and connect with an Elipacko product specialist today.
